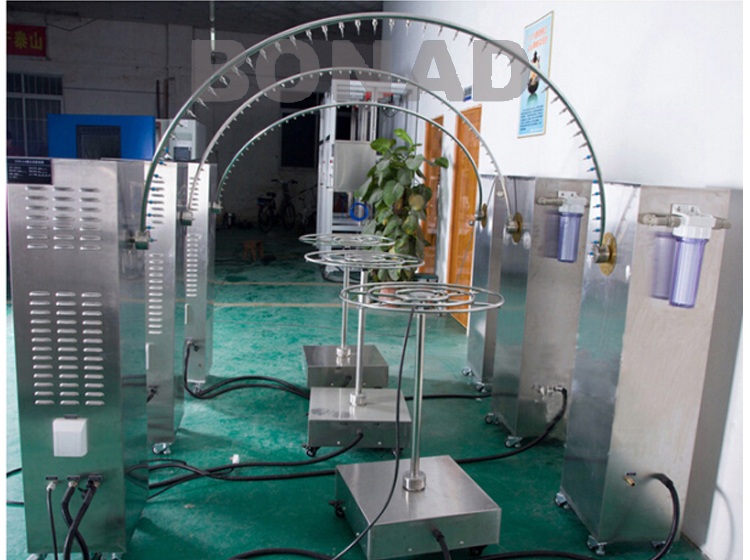

IEC 60529 IPX3/4 Oscillating Tubes Rain Test Equipment

Model:BND-IPX34C

Test standard:

Compliance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)".

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

No.	Model	BND-IPX34C-R1600	BND-IPX34C-R1400	BND-IPX34C-R1200		BND-IPX34C-R1000			BND-IPX34C-R800		BND-IPX34C-R600
1	Swing pipe size (mm)	R1600	R1400	R1200		R1000			R800		R600
2	External dimensions (mm)	L4000*D3200* H2800	L3800*D3000* H2600	L3200*D2400* H2400		L2800*D2200* H2200			L2400*D800* H2000		L2000*D1400* H1800
3	Flow (L / mm))	0-10L/min	0-10L/min	0-6L/min		0-6L/min			0-4L/min		0-3L/min
4	Turntable Size (mm)	∮1000 (can customize,∮800∮600、∮400、∮200 turntable)
5	Turntable height adjustable range	1750-2350mm	1750-2350mm		1350-1950mm		1350-1950mm	950-1550mm		550-1000mm
6	Pendulum tube diameter (mm)	>15						15
7	Water pore size (mm)	0.4 mm
8	Pendulum tube angle	120o（IPX3）, 350o（IPX4）or customize
9	Swing speed tube	120°(to and fro) 4S、360°(to and fro) 12S(accurate control)or customize
10	Swing pipe material	SUS304 stainless steel
11	Turntable speed test	1-5r/min(accurate control)
12	protective device	Leakage, water shortage, short circuit
13	Power supply (V)	220V
14	Power（KW）	1
15	Standards	IEC60529:1989+A1:1999、（IPX3、IPX4)
