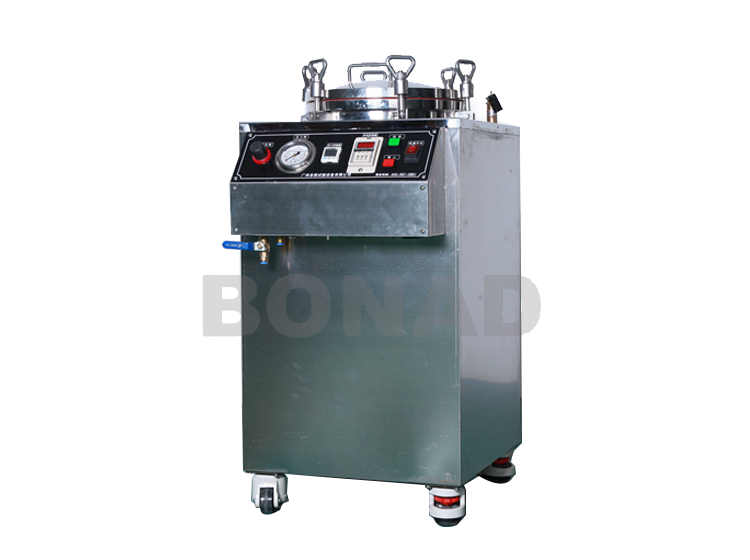

IPX8 Strong Pressure Immersion water Test
Testing standard:
Conforming to IEC 60529: 2001 "Degrees of protection provided by enclosures (IP Code)".
Appliance:
The main function of the device is for the electronic and electrical products, lamps, electrical cabinets, electrical components, cars, motorcycles and other parts and other products in the simulated rain conditions, the physical and other related properties of the test. After the test, through the test to determine whether the performance of the product requirements, in order to facilitate the product design, improvement, testing and factory inspection use.
Features:
1, suitable for product IPX8 test.
2, IPX8 pressure flooding test device tank all use SUS304 # stainless steel plate high precision overall sub-arc welding forming, outside the mirror polishing, the inner rough throw, beautiful appearance, easy to clean and durable.
3, special silicone seal (good elastic never aging, a seal can be used for ten years).
4, all electronic components imported LG, Panasonic, Omron, Anliang and other brands.
5, a time control function, set the time: 0-999 minutes, to reach the test time can automatically stop the pressure, and automatically drain the tank air, the tester can open the lid to remove the test sample can be.
6, the bottom of the tank has a water inlet valve and a drain valve, and send 5 meters water hose.
7, the base is equipped with four activities with a brake wheel, easy to move.
8, manual test machine ---- use of domestic brands "red flag" brand pressure gauge (surface diameter 100mmm, accuracy of 1.6) shows the intuitive pressure inside the tank, the operation by manually adjusting the regulator to control the tank test Pressure, pressure regulator with voltage regulator function, adjust the pressure can always maintain a stable test pressure.
Automatic test machine ---- imported Panasonic brand "pressure sensor" automatic control tank test pressure, control accuracy ± 0.002Mpa, display accuracy of 0.001Mpa
|
|
Model
|
IPX8-30M-100L
|
IPX8-30A-100L
|
IPX8-50M-100L
|
IPX8-50A-100L
|
IPX8-120A-100L
|
|
1
|
Pressure adjustment method
|
manual adjustment
|
automatic adjustment
|
manual adjustment
|
automatic adjustment
|
automatic adjustment
|
|
2
|
control accuracy
|
visual inspection
(manual)
|
±0.002Mpa(AUTO)
|
visual inspection
(manual)
|
±0.002Pa(AUTO)
|
±0.002Pa(AUTO)
|
|
3
|
Pressure adjustment range
|
0.05-0.3Mpa
|
0-0.3Mpa
|
0.05-0.5Mpa
|
0-0.5Mpa
|
0-1.2Mpa
|
|
4
|
Test water depth range
|
5-30M
|
0-30M
|
5-50M
|
0-50M
|
0-120M
|
|
5
|
Exhaust Pressure of safety valve
|
0.35Mpa
|
0.35Mpa
|
0.55Mpa
|
0.55Mpa
|
1.25Mpa
|
|
6
|
The maximum limit of pressure
|
0.4Mpa
|
0.4Mpa
|
0.6Mpa
|
0.6Mpa
|
1.3Mpa
|
|
7
|
accuracy
|
0.4 class
|
0.001Mpa
|
0.4 class
|
0.001Mpa
|
0.001Mpa
|
|
8
|
The thickness of the tank
|
3mm
|
3mm
|
4mm
|
4mm
|
6mm
|
|
9
|
thickness of flange
|
20mm
|
20mm
|
25mm
|
25mm
|
30mm
|
|
10
|
diameter of the tank
|
0.5M
|
|
11
|
height of water level
|
0.5M
|
|
12
|
Outer size
|
500*600*1300MM
|
|
13
|
Material of tank
|
SUS304#
|
|
14
|
Control time
|
0-999Min
|
|
15
|
Protection function
|
pressure safety protection,anti creeping switch
|
|
16
|
voltage
|
AC220V
|
|
17
|
Power (w)
|
100w
|
|
18
|
weight
|
60kg
|
80kg
|
120kg
|
|
19
|
Standard
|
IEC60529:1989+A1:1999
|

|
