Soil PH Sensor
Name:Soil PH Sensor
Type:BND-PH10
Manufacturer:PH10 soil pH (PH value) sensor, to solve the traditional soil PH to be equipped with professional display instruments, cumbersome calibration, integration difficult, power consumption, expensive, carrying difficulties and other shortcomings.
Product Description:


PH10 Soil PH sensor Made in China

Product Introduction

PH10 soil pH (PH value) sensor, to solve the traditional soil PH to be equipped with professional display instruments, cumbersome calibration, integration difficult, power consumption, expensive, carrying difficulties and other shortcomings. Can be widely applied to agricultural irrigation, flower and horticulture, meadow pastures, soil testing, plant culture, scientific experiments and other fields. PH10 low power consumption, for long-term uninterrupted monitoring. The sensor has the following features:

· New soil pH sensor for online real-time monitoring of soil pH.

Adopt international advanced solid dielectrics and large areas of PTFE liquid junction, easy to plug, maintenance-free.

· Waterproof seal, high integration, small size, low power consumption, easy to carry, outdoor use.

High precision, fast response, good interchangeability and reliable performance.

Complete protection circuit and a variety of signal output interface optional.

Technical parameters (Note 1)

Signal output type

Voltage output 0-2V

(Output impedance of about 0 Ohm)

Current output 4-20mA

(Load resistance <500ohm)

RS485 interface

Modbus protocol

Supply voltage

3.6-30V/DC

12-30V/DC

3.6-30V/DC

Static power

6mA@24V DC

30mA@24V DC

(Current output channel is20mA)

6mA@24V DC

PH value range

Range: 0-14PH, resolution: 0.01PH, accuracy ± 0.1PH

Temperature range

Range: -40 ~ 80 ℃, resolution: 0.1 ℃, accuracy: ± 0.5 ℃

Degree of protection

IP65

Operating environment

-40~85℃

Default cable length

PH probe cable 5 m

Transmitter cable 2 m

Cable length can be customized

Dimensions

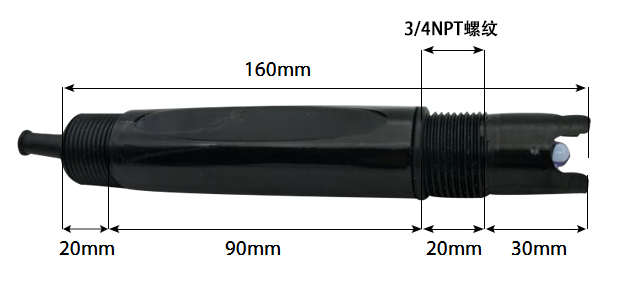

PH sensor - probe part size: length 160mm, diameter 30mm

PH sensor - probe part size: length 116mm, diameter 30mm

PH sensor -the size of the Transmitted

4.2  Select the order

Code No.

code

Explanation

Code1MODEL

PH10

PH10 PH soil sensor

Code 2

Supply voltage

A

B

3.9-30V DC

3.3-16V DC

Code 3

output signal

A

B

C

D

E

F

G

Voltage output 0-2V

Current output 4-20mA

RS485 interface, Modbus protocol

RS485 interface, Modbus protocol & voltage 0-2V output

RS485 interface, Modbus protocol & current 4-20mA output

SDI-12 interface

customize

Code 4

Cable length

002

XXX

PH sensor cable 5 meters, transmitter cable 2 meters

PH sensor cable 5 meters, custom transmitter cable, XXX for any line length (unit: m)

Model example:

PH10 soil PH sensor, 3.9-30V DC, RS485 interface, Modbus protocol, PH sensor cable 5 m, transmitter cable 2 m. The selection code is: PH10 - A C 002
