Structural parameters
|
|
External dimensions
|
About 1500*deep 1900*high 2250 mm
|
|
Inner box size
|
About 1000*Inlet depth 1000*height 1000 mm
|
|

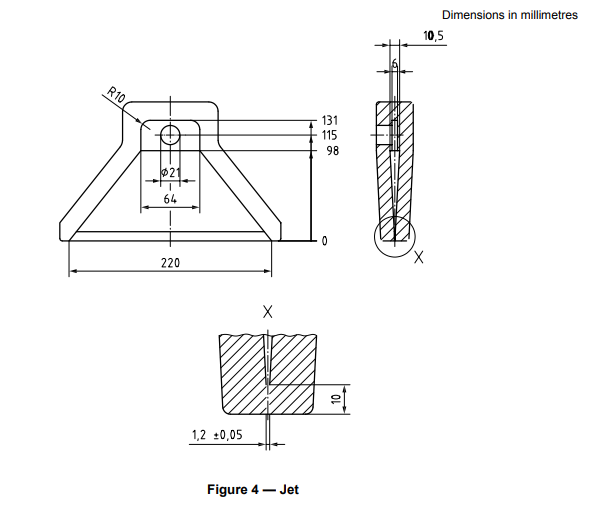

Number of spray holes
|
1 sewing spray torion;
|
|
Spraying position
|
On the right side of the inner box
|
|

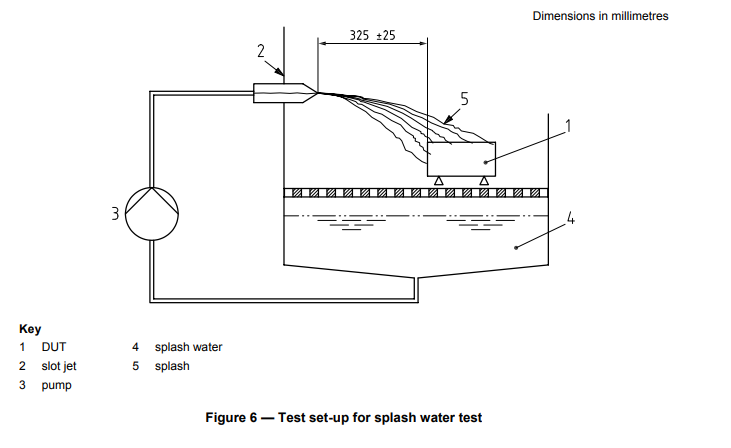

Spirit and sample distance
|
325 ± 25mm (manual adjustment)
|
|
Function parameters
|
|
High temperature room temperature range
|
RT+10℃～150℃
|
|
Heating rate
|
RT+10℃～150℃≤45min
|
|
Water temperature control range
|
（0～+4）℃
|
|
Cooling rate
|
25℃～2℃≤60min
|
|
Water spray
|
（3～4）L/3S
|
|
Test liquid values
|
Remove water or+3%Arizona fine dust
|
|
Spray time per cycle (30 minutes)
|
3s, interval time: interval time: 29m57s (touch screen setting)
|
|
Number of cycles
|
100 times (touch screen setting)
|
|
Electrical parameter
|
|
Device power supply
|
380V/50Hz, three -phase and five -line system
|
|
equipment power
|
12.0KW
|
|
Safety protection function
|
Leakage protection, water deficiency protection, short circuit protection, phase sequence protection, heat overload protection
|
