IEC 60529 BND-TPK08 Test Probe Kits with Thrust
Name:IEC 60529 BND-TPK08 Test Probe Kits with Thrust
Type:BND-TPK08
Manufacturer:we specialize in providing top-tier test probes designed according to IEC 60529 standards. With years of experience in the industry, our mission is to deliver products that guarantee safety and reliability.
Product Description:

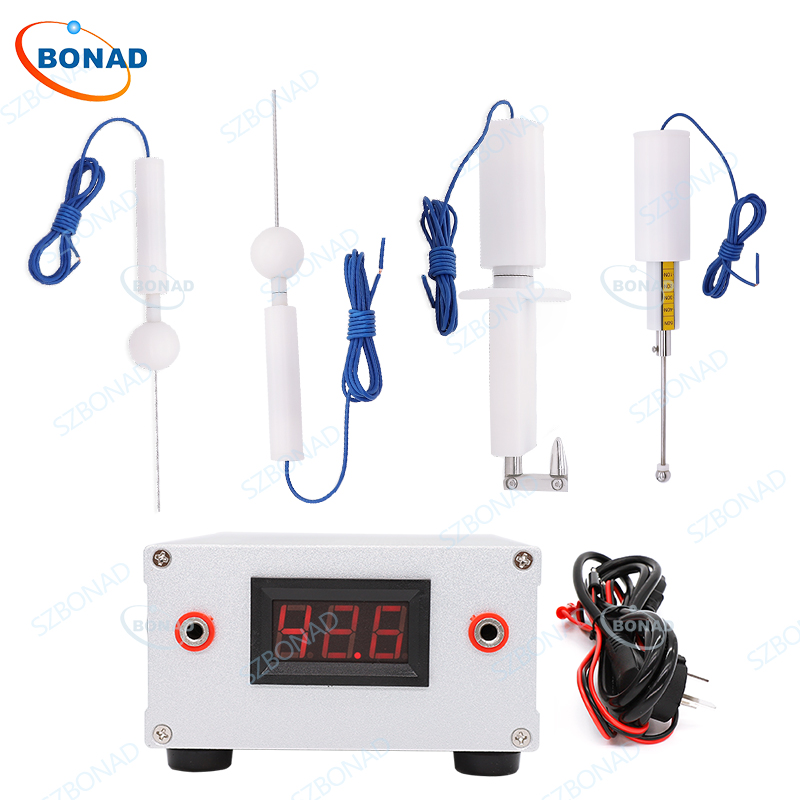

IEC 60529 Test probe kits with Thrust

Model:BND-TPK08

Product Overview:

Our range of IEC 60529 test probes includes:

  1. Sphere 50 mm Diameterprobe with 50N Force(BND-AF)

    • Ideal for testing protection against access to hazardous parts.
    • Ensures compliance with international safety standards.
  2. Jointed Test Finger probe with 10N Force(BND-BF10)

    • Mimics human finger for realistic testing scenarios.
    • Highly accurate and durable.
  3. Test Rod 2.5 mm Diameter, 100 mm Long with 3N Force(BND-CF)

    • Perfect for testing small openings.
    • Precision-engineered for reliable results.
  4. Test Wire 1.0 mm Diameter, 100 mm Long with 1N Force(BND-DF)

    • Designed for intricate testing requirements.
    • Ensures thorough inspection of small gaps.
  5. Electrical Contact  Indicator for test probes(BND-ZSQ)

    • Provides safe, controlled low-voltage supply for various tests.
    • Essential for comprehensive safety assessments.

Detailed Product Descriptions

BND-AF
test probe A with 50N

test probe A with 50N

IEC60529  IEC61032  IEC60335
IEC61029  IEC60745  IEC60065
IEC60950

Ball Diameter:50mm
Baffle Plate Diameter:45mm
Baffle Plate Thickness:45mm
Handle Diameter:10mm
Handle Length:100mm
Force :10N/20N/30N/40N/50N.

BND-BF10

test probe B with 10N

IEC61032  IEC60950  IEC60335
IEC60529  IEC60045  IEC60884
IEC60745

Knurled Finger Diameter:12mm
Knurled Finger Length:80mm
Baffle Plate Diameter:50mm
Baffle Plate Length:100mm
Baffle Thickness:20mm
Force :10N.

BND-CF

test probe C With 3N

IEC60335 IEC 61032 IEC 60529

Test Probe Length:100mm
Test probe Diameter:2.5mm
Dam-sphere Diameter:3.5mm
Handle Diameter:10mm
Handle Length:100mm
With force: 3N

BND-DF

test probe D with 1N

IEC60335 IEC 61032 IEC 60529

Test Probe Length:100mm
Test Probe Diameter:1.0mm/2.5mm
Dam-sphere Diameter:35mm
Handle Diameter:10mm
Handle Length:100mm
Force:1N

BND-ZSQ

Electrical Contact Indicator for Test Finger Probe

IEC 60335 IEC 61032 IEC 60529

Input: AC 180-250V

Output: 41-43V

Fuse: 220V 2A
